MacIQ WM Pulse

PLUM ELECTRONICS
IoT pulse module
for flow meters/ water meters

IoT pulse module
for flow meters/ water meters

MacIQ WM Pulse is a compact IoT module designed to work with flow meters or water meters equipped with pulse outputs. It forms an integral part of a stationary remote reading system, enabling precise measurement and monitoring of water consumption. The counted pulses are converted into digital data, then sent to a defined data aggregation system. A solution recommended for particularly difficult to access locations.

key
benefits

  • compatible with any meter that has pulse outputs, has extensive functionality for detection of flow direction, configuration of pulse duration and length
  • outputs replicating input pulses for connection to a local BMS or industrial automation system
  • continuous monitoring and alarms allow immediate response to failures and leaks
  • reliable data transmission in harsh field conditions through the use of modern NB-IoT wireless communication technologies
  • safety is ensured by built-in encryption of data transmission
  • easy installation and configuration thanks to NFC-enabled phone app or configuration via IT system

configurable
alarms

minimum and maximum flow rate alarm thresholds

minimum and maximum flow rate warning thresholds

leakage threshold

backflow

presence of unwanted of magnetic and electromagnetic fields

low battery

binary state change

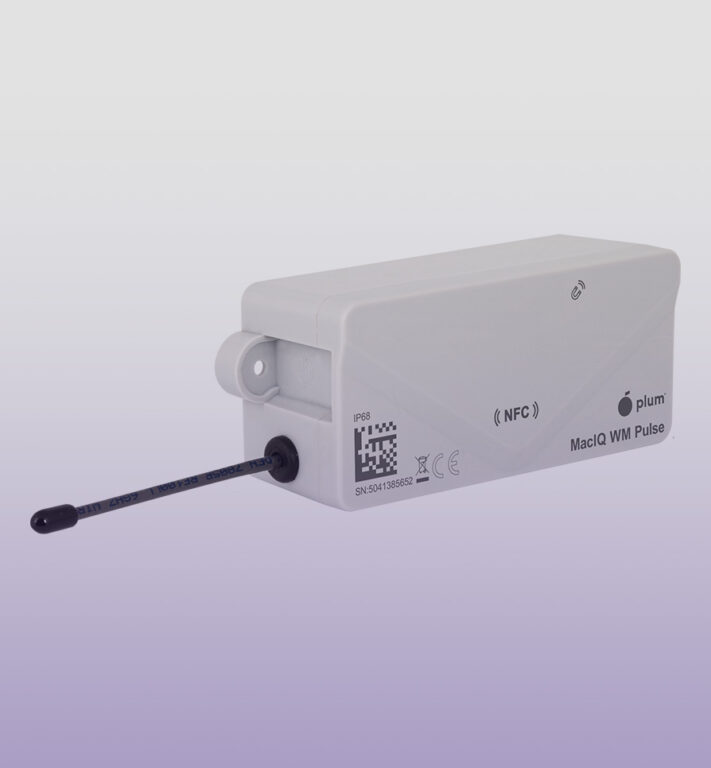

antennas

short
antenna

  • fully submersible, report sent only after the water level has dropped below the antenna
  • dedicated IP68 sealed antenna

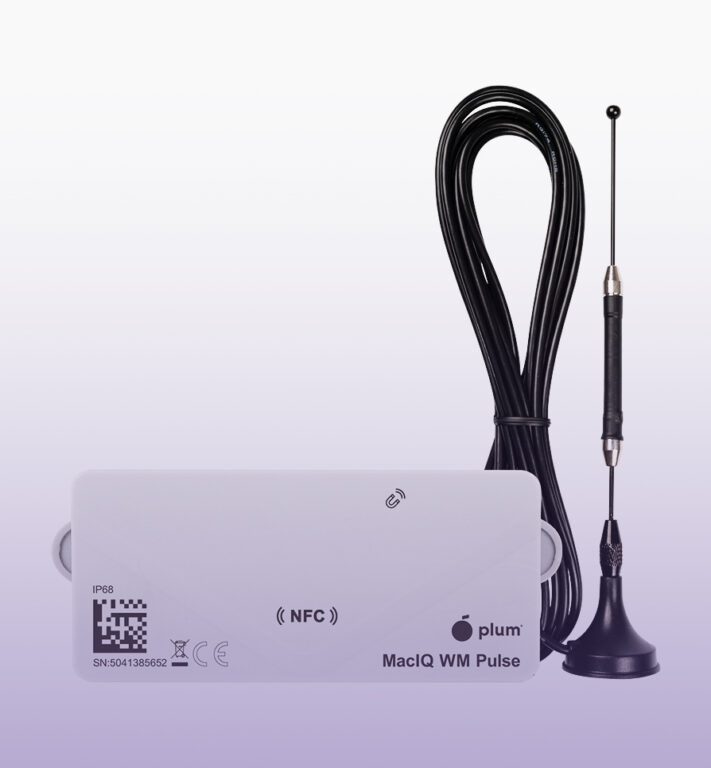

external
antenna

  • designed for installation in water meter wells and locations with poor coverage
  • fully submersible – reports until antenna is submerged
  • dedicated IP68 sealed antenna
  • version with SMA connector available on request

technical
data

dimensions:
109,2 x 40 x 44,7 mm
housing material:
polycarbonate
operating temperature:
storage from -25 °C to +50 °C; operation from -5 °C to +50 °C
wyświetlacz:
optical indication of transmission status
user interface:
IP68 in accordance with the requirements of EN 60529

accessories

eWebtel

Measuring data acquisition system

ConfIT!

Plum devices configuration software

ConfIT! data loggers

Configuration application for data loggers
